Office 365 Tenant to Tenant Migration without expensive tools


I have recently been working on a project to move nearly 2000 users from one Office 365 tenant to another. You may say simple, there are plenty of third party tools out there that will do that for you, but what about if the customer has not budgeted for the extra cost for these tools…. What do you do?

Now in this solution we had to purchase a very cost effective tool and a SSL certificate for the Exchange Server. The costs for these were no where near the costs of all of the well known tools from BitTitan and Cloud Migrator. we were quoted $6 per user by BitTitan as it was education or for normal businesses we were quote $14 per user. So as you would expect approx 2000 licenses at $6 each works out very expensive for an unexpected cost.

The tool we used was called Systools OneDrive Migrator and as you can see the tool cost starts from $99. We ended up paying $1 per user for this product. So a massive saving on the total cost of the tool from other competitors.

Stage 1 – Build a On Premise Hybrid Server

Download the latest Exchange 2016 ISO from here: Exchange Download

Before you deploy the On Premise Exchange Server you need to make sure your AD infrastructure is in good shape and able to support the deployment of Exchange 2016, so you need to ensure that the Forest and Domain Functional Levels are at least Windows Server 2008 R2

Before you begin to install Exchange Server 2016 you will need to install the Windows Server Roles and Features… Below is the PowerShell to ensure that all Windows Features are deployed:

Windows Server 2012 and 2012 R2

Install-WindowsFeature AS-HTTP-Activation, Desktop-Experience,
NET-Framework-45-Features, RPC-over-HTTP-proxy, RSAT-Clustering,
RSAT-Clustering-CmdInterface, RSAT-Clustering-Mgmt,
RSAT-Clustering-PowerShell, Web-Mgmt-Console, WAS-Process-Model,
Web-Asp-Net45, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth,
Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging,
Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter,
Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service,
Web-Net-Ext45, Web-Request-Monitor, Web-Server, Web-Stat-Compression,
Web-Static-Content, Web-Windows-Auth, Web-WMI, Windows-Identity-Foundation,
RSAT-ADDS

Windows Server 2016

Install-WindowsFeature NET-Framework-45-Features, RPC-over-HTTP-proxy,
RSAT-Clustering, RSAT-Clustering-CmdInterface, RSAT-Clustering-Mgmt,
RSAT-Clustering-PowerShell, Web-Mgmt-Console, WAS-Process-Model,
Web-Asp-Net45, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth,
Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging,
Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter,
Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service,
Web-Net-Ext45, Web-Request-Monitor, Web-Server, Web-Stat-Compression,
Web-Static-Content, Web-Windows-Auth, Web-WMI, Windows-Identity-Foundation,
RSAT-ADDS

When the pre reqs are installing it will look something like this:

exchange-2016-pre-requisites-01

You then need to prepare the your AD Environment by running the following commands:

setup o	/prepareschema
      o	/prepareAD
      o	/preparealldomains
			    /iacceptexchangeserverlicenseterms

and then to begin the installation of Exchange 2016 you need to run the following:

setup /m:install /r:mailbox /iacceptexchangeserverlicenseterms

A successful Exchange Installation will look like this:

Exchange 2016 Installation

Stage 2 – AAD Connect

A Guide for deploying AAD Connect can be found here

Key things to take into consideration are to ensure the following:

1, The AD Account UPNs match that of the email address of the user

2, When you deploy AAD Connect the following options must be chosen in order for the Exchange Hybrid to work correctly:

optional_features

Stage 3 – Update all the users in Active Directory to have some Exchange attributes

The first thing you need to do is collect information about the online mailbox that you are looking to move. The information you need is the Mailbox Alias The User Principal Name and the Mailbox Guid. To get this information and output it to a CSV file run the following script in your Exchange Online Shell.

Get-Mailbox -ResultSize Unlimited |
Select-Object Alias,UserPrincipalName,ExchangeGUID |
Export-Csv -Path c:\temp\userExport.csv -NoTypeInformation

Once you have exported the above information you will need to move over to you On Premise Exchange Server and the Exchange Management Shell and run the following command that update all of the Active Directory objects with the required Exchange Attributes:

$allUsers = Import-Csv C:\temp\userExport.csv
foreach ($user in $allUsers) { Enable-RemoteMailbox $user.alias
-RemoteRoutingAddress "$($user.alias)@tenant.mail.onmicrosoft.com";
Set-RemoteMailbox $user.alias -ExchangeGuid $user.ExchangeGuid
-EmailAddressPolicyEnabled $false -PrimarySmtpAddress
"$($user.alias)@bscmail.org" }

When you go into the Exchange Management Centre and look at the mailboxes you will be able to see all of your Exchange Online Mailboxes listed in your On Prem Exchange Server.

Stage 4 – Migrate mailboxes to Exchange 2016

Prepare the Hybrid Configuration

Details for configuring and Exchange Hybrid based on your on prem Exchange Server can be found here:

https://technet.microsoft.com/en-us/exdeploy2013/Checklist?state=3229-W-AQAIAAAAQAAAAAEAAAAAAAAAAAAAwAMAAAA~

Migrate Mailboxes to the Hybrid Server

Steps to migrate mailboxes from Exchange Online can be found here:

https://docs.microsoft.com/en-us/exchange/hybrid-deployment/move-mailboxes#move-exchange-online-mailboxes-to-the-on-premises-organization



Stage 5 – Migrate mailboxes to the other Office 365 Tenant

Re point the Hybrid connection to the new Office 365 Tenant

All the hard work would have been done in the previous section about creating the hybrid. – all you need to do here is re run the hybrid configuration wizard and point it at the new Office 365 tenant.

Migrate mailboxes to Office 365

Steps to move mailboxes back to Office 365 can be found here

https://docs.microsoft.com/en-us/exchange/hybrid-deployment/move-mailboxes

Stage 6 – Preparing OneDrive For Business for Migration

In order for us to be able to migrate data from OneDrive for business we will need to configure user interpretation on all of the users OneDrive sites. To do this the following steps need to be followed:

Assign eDiscovery permissions to OneDrive for Business Sites – Follow this guide from Microsoft:

https://docs.microsoft.com/en-us/office365/securitycompliance/assign-permissions-to-onedrive-for-business-sites?redirectSourcePath=%252fen-us%252farticle%252fAssign-eDiscovery-permissions-to-OneDrive-for-Business-sites-422858ff-917b-46d4-9e5b-3397f60eee4d

Once this has been done, the user that will be used to the data migration will have sufficient access to the users OneDrive for Business sites.

Stage 7 Migrating OneDrive For Business to the new Tenant

This stage is rather like the previous one. However you will need to ensure that all the users OneDrive sites have been provisioned, unfortunately just by allocating a license to the user does not automatically provision, so there is a script that needs to be run in order to force the provisioning to take place. This also takes some time to do depending on how many users there are.

1, Provision OneDrive For Business Sites in new Tenant

https://docs.microsoft.com/en-us/onedrive/pre-provision-accounts

2, Assign eDiscovery permissions to OneDrive for Business – New Tenant (destination)

https://docs.microsoft.com/en-us/office365/securitycompliance/assign-permissions-to-onedrive-for-business-sites?redirectSourcePath=%252fen-us%252farticle%252fAssign-eDiscovery-permissions-to-OneDrive-for-Business-sites-422858ff-917b-46d4-9e5b-3397f60eee4d

3, Run the Systools Migration Tool to move the data between the tenants. – Make sure your CSV files that are created with this tool match the users up correctly, as it will be very easy to mix up the user source and destination. – we don’t want users to get the wrong data in their OneDrive sites.

Download & Install SysTools OneDrive Migrator Tool.

check-for-prerequisiteNow provide the ID for the first Onedrive account. CLick on the “Login” button:

check-for-prerequisiteNow, The tool will redirect to a browser window where you have to provide the password for the same.

check-for-prerequisite


STEP 2


Now, Provide the credentials for the second account as follows:

scan


STEP 3


Click on the “Import CSV” button in order to add a csv file containing all the id that are to be added to the CSV file.

select file typeNavigate and select the location for the CSV file as follows:

select file type


STEP 4


The Ids will be displayed as follows in the following section:

file folderClick on the “Next” button.

file folder


STEP 5


Now, Provide the filters in the following section as follows:

Provide the permissions for which the files are to be transferred on the respective ids:

file folderClick on the “Import CSV” button.


STEP 6


Go to the Date filterto provide the calendar interval according to which the data should be transferred.

search by


STEP 7


Click on “Advanced Settings” and check mark the check box correspoding to the text include file type as follows:

search byClick on the “Export” button.


STEP 8


The export process will start as follows:

search byThe conversion will be completed as follows:

search by


STEP 9


Click on the “Save Report” to save the export report for the process:

search byNavigate the location for the final export report file:

search byThe export report will be saved successfully.

search by


STEP 10

The export report can be viewed as follows:

search byThe final migrated can also be viewed as:

search by

Advertisements

Exchange 2013 / 2016 Enabling TLS 1.2

Exchange

I have recently been working with a customer to upgrade to Exchange Server 2016, one of the requirements is to enable TLS 1.2. The following will guide you through the preparation, implementation and then testing.

For the testing I have used ZenMap/NMAP: –  https://nmap.org/download.html

Preparation

Exchange Server 2016

  • Install Cumulative Update (CU) 8 in production for TLS 1.2 support and be ready to upgrade to CU9 after its release if you need to disable TLS 1.0 and TLS 1.1. –CU 10 is now available.
  • Install the newest version of .NET and associated patches supported by your CU (currently 4.7.2).

Exchange Server 2013

  • Install CU19 in production for TLS 1.2 support and be ready to upgrade to CU20 after its release if you need to disable TLS 1.0 and TLS 1.1.
  • Install the newest version of .NET and associated patches supported by your CU (currently 4.7.2).

Windows Server 2016

  • TLS 1.2 is the default security protocol for Schannel and consumable by WinHTTP.
  • Ensure you have installed the most recent Monthly Quality Update along with any other offered Windows updates.

Windows Server 2012 R2

  • TLS 1.2 is the default security protocol for Schannel and consumable by WinHTTP
  • Ensure your server is current on Windows Updates.
    • This should include security update KB3161949 for the current version of WinHTTP.
  • If you rely on SHA512 certificates; please see KB2973337.

Windows Server 2012

  • TLS 1.2 is the default security protocol for Schannel.
  • Ensure your server is current on Windows Updates.
    • This should include security update KB3161949 for the current version of WinHTTP.
  • If you rely on SHA512 certificates; please see KB2973337.

Implementation

Enable TLS 1.2 for Schannel

To enable TLS 1.2 for both server (inbound) and client (outbound) connections on an Exchange Server please perform the following.

  1. From Notepad.exe, create a text file named TLS12-Enable.reg.
  2. Copy and paste the following text into the file.
Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\
Protocols\TLS 1.2]
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\
Protocols\TLS 1.2\Client]
"DisabledByDefault"=dword:00000000
"Enabled"=dword:00000001
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\
Protocols\TLS 1.2\Server]
"DisabledByDefault"=dword:00000000
"Enabled"=dword:00000001
  1. Save TLS12-Enable.reg.
  2. Double-click the TLS12-Enable.reg file.
  3. Click Yes to update your Windows Registry with these changes.
  4. Restart the machine for the changes to take effect.

Enable TLS 1.2 for .NET 4.x

This step is only required for Exchange Server 2013 or later installations where .NET 4.x is relied upon.

The SystemDefaultTlsVersions registry value defines which security protocol version defaults will be used by .NET Framework 4.x. If the value is set to 1, then .NET Framework 4.x will inherit its defaults from the Windows Schannel DisabledByDefault registry values. If the value is undefined, it will behave as if the value is set to 0. By configuring .NET Framework 4.x to inherit its values from Schannel we gain the ability to use the latest versions of TLS supported by the OS, including TLS 1.2.

  1. From Notepad.exe, create a text file named NET4X-UseSchannelDefaults.reg.
  2. Copy, and then paste the following text.
Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\.NETFramework\v4.0.30319]
"SystemDefaultTlsVersions"=dword:00000001
[HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\.NETFramework\v4.0.30319]
"SystemDefaultTlsVersions"=dword:00000001
  1. Save the NET4X-UseSchannelDefaults.reg file.
  2. Double-click the NET4X-UseSchannelDefaults.reg file.
  3. Click Yes to update your Windows Registry with these changes.
  4. Restart your computer for the change to take effect.

Note: When configuring a system for TLS 1.2, you can make the Schannel and .NET registry keys at the same time and reboot the server once.

Testing

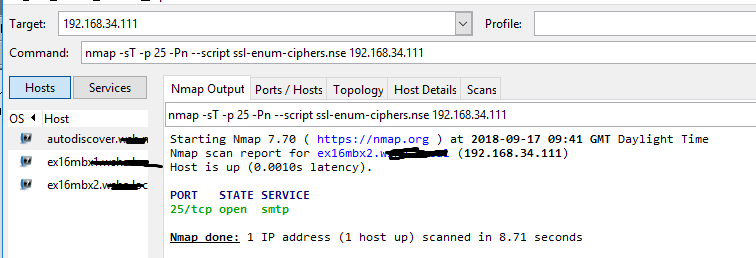

Testing before TLS has been enabled (the default state of an Exchange 2016 Deployment) using ZenMap

NO TLS enabled

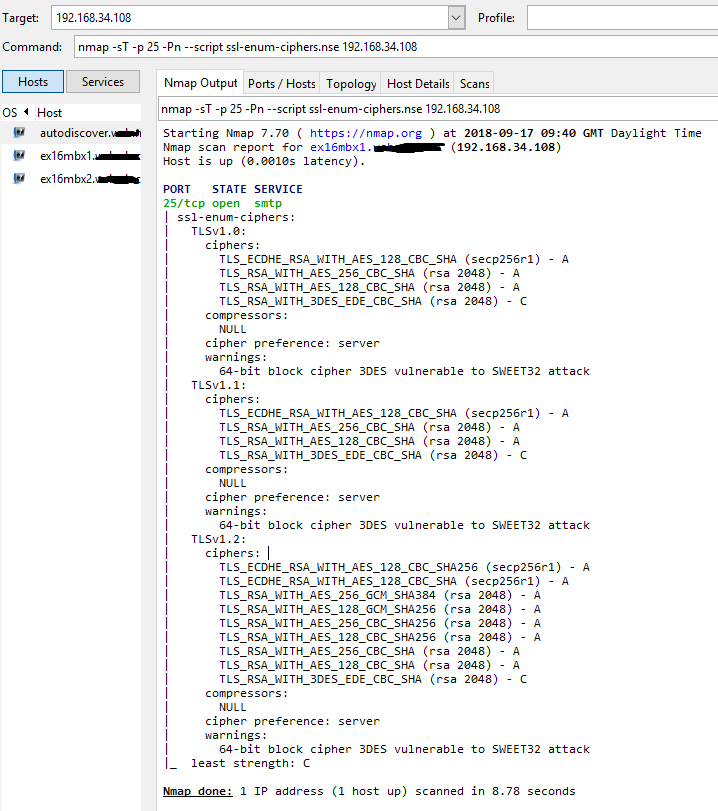

Testing after TLS has been enabled (after following the above procedures) using ZenMap

TLS Enabled

Message Headers (Exchange Server 2016 Only)

Message header data in Exchange Server 2016 provides the protocol negotiated and used when the sending and receiving host exchanged a piece of mail. While this is a more manual method of checking how mail arrived it can be used for testing between specific systems in a pinch.

Example when viewing message header data via Message Header Analyzer at https://testconnectivity.microsoft.com

TLSP2_1

Mail Flow via SMTP Logging

SMTP Logs in Exchange 2016 will contain the encryption protocol and other encryption related information used during the exchange of email between two systems.

When the server is the SMTP receiving system, the following strings exist in the log depending on the version of TLS used.

  • TLS protocol SP_PROT_TLS1_0_SERVER
  • TLS protocol SP_PROT_TLS1_1_SERVER
  • TLS protocol SP_PROT_TLS1_2_SERVER

When the server is the SMTP sending system, the following strings exist in the log depending on the version of TLS used.

  • TLS protocol SP_PROT-TLS1_0_CLIENT
  • TLS protocol SP_PROT-TLS1_1_CLIENT
  • TLS protocol SP_PROT-TLS1_2_CLIENT



Exchange Online Delegation Rights

exchange-online

Managing Exchange Calendars with PowerShell.

Some companies I deployed Exchange or Office 365 would like to be able to view readable information in everyone’s calendar by default you only get Free or Busy information. The following script changes the default calendar permissions for ALL Users folders to Reviewer – This gives you readable / not editable information.

foreach($user in Get-Mailbox  -RecipientTypeDetails UserMailbox) {
$cal = $user.alias+":\Calendar"
Set-MailboxFolderPermission -Identity $cal -User Default -AccessRights Reviewer
}

Senior management sometimes have PA’s that will need delegate access to their calendar, this this will include view calendar items that are marked as private.

To Set the delegate to view private items in the calendar

Add-MailboxFolderPermission –Identity <delegates mailbox>:\Calendar
–User <delegated mailbox> -AccessRights Editor -SharingPermissionFlags
Delegate,CanViewPrivateItems

To Set the delegate to not view private items in the calendar

Add-MailboxFolderPermission -Identity <delegates mailbox>:\Calendar
-User <delegated mailbox> -AccessRights Editor -SharingPermissionFlags
Delegate

To remove any individual calendar permission

Remove-MailboxFolderPermission -Identity "delegates mailbox:\Calendar"
-user "delegated mailbox"

How to migrate G-Suite to Office 365

Wow, time flies when you are having fun….I can’t believe it has been 7 months since my last post.

So since January I have been really busy with numerous projects revolving largely around Office 365 and Exchange. I have picked up some useful knowledge which I will write about here in the coming weeks.

This post is dedicated to something new to me – G-Suite to Office 365 – What a ride this has been! Let me explain how I managed to get it all to hang together and get the two services to exist together during the migration and testing phases.

EMAIL Co Existence / Routing between O365 and G-Suite

This was the tricky bit, how could we get users to co-exist in different services whilst we undertake testing and migrations? There is no connector or hybrid solution like there is with Exchange. We did not want to cut over all the users at the same time – this had to be a phased migration over to Office 365. We are also using MimeCast for SPAM and Relay protection so we need Google & Office 365 to send outbound via Mimecast without any mails getting blocked. Here is how we did it:

Office 365

Office 365 needs to be forwarding mail onto a domain that G-Suite knows about and the users mailboxes need to have an alias address for office 365 to forward onto.

The steps are as follows:

  • Add Domain Domain A with MX Record
  • Add secondary email address for each user. This needs to be set to: user@domainA.com

For users that are not yet in Office 365 we need to configure the Accepted Domain as an Internal Relay in Mail Flow in Exchange Online Admin Centre

internalrelay

Then we create a connector back to G-Suite for any address that does not live in O365 yet. Doing this tells Exchange Online to send the email to the recipient over in G-Suite.

We then stumbled across another minor problem. In order for the Email Data to be migrated into the new Office 365 users mailbox, we need to activate the license. In doing this creates a Office 365 mailbox so then Office 365 thinks the user is now happily working from Office 365. “WRONG”!!! The user still lives in G-Suite until the migration is completed. So in order for the users in Office 365 to send to a user in G-Suite who’s mailbox is provisioned in O365 we have need to create another forwarder back to G-Suite until the migration is completed. How to do this in bulk is in a following section in the blog post. – Adding Contacts to Office 365.

G-Suite

G-Suite needs to have a forwarder configured that the Tenant does not have the domain registered to. If you register a domain with Google it treats all SUB domains as internal as well, so a completely new unregistered domain is required to forward any Office 365 bound mail to.

In order for Gmail to send a message to a forwarding address, the address needs to be verified. So here is a way to forward to an address that is not verified (added to the G-Suite Tenant):

You will need to apply mappings (aliases) to recipient addresses on messages received by your domain. You can map multiple individual recipient addresses (a maximum of 2,000 entries) to other addresses. An individual address can map to a maximum of twelve addresses.

This is a basic routing concept, sometimes called a virtual user table, that’s frequently used in mail routing situations to redirect mail from one address to another. By using this setting you don’t need to create individual routing settings for each address mapping.

Configure the Recipient address map setting for your domain:

  1. From the Admin console Home page, go to Appsand thenG Suiteand thenGmailand thenAdvanced settings.Tip: To see Advanced settings, scroll to the bottom of the Gmail page.

  2. At the top of the page, ensure that the top-level org is highlighted.
  3. Scroll down to the Recipient address map section, or type Recipient address map in the search box:

    If the setting’s status is Not configured yet, click Configure (the “Add setting” dialog box displays).

    ​If the setting’s status is Locally applied or Inherited, click Edit to edit an existing setting (the “Edit setting” dialog box displays).

  4. Enter a short description that will appear within the setting’s summary.
  5. Under Messages to affect, select All incoming messages or Only external incoming messages.
  6. Scroll down to Routing options, and select Also route to original destination to send a copy of the message to the new address and also deliver it to the original recipient.

    Note: If you don’t select this option, the message is only sent to the new address.

    For example, jensmith@solarmora.com is in the address map and the new address is jensmith@gmail.com. If the checkbox is checked, both jensmith@solarmora.com and jensmith@gmail.com will receive a copy of the message. If the checkbox is unchecked, then only jensmith@gmail.com will receive the message.

  7. Enter address mappings in the box.

    Each mapping must include two addresses on a single line, separated by a comma. Place the map-to address after the comma. In the following example, davidb@solarmora.com is the map-to address:

    jensmith@solarmora.com, davidb@solarmora.com
    Each address must be a complete, specific address, and is case-insensitive. An address can be mapped to multiple map-to addresses. In the following example, jensmith@solarmora.com is mapped to both michellec@solarmora.com and johnd@solarmora.com:

    jensmith@solarmora.commichellec@solarmora.com
    jensmith@solarmora.comjohnd@solarmora.com

  8. Click Add to add the mappings.
  9. When you’re finished making changes, click Add setting or Save to close the dialog box.
    Note: Any settings you add are highlighted on the “Email settings” page.
  10. Click Save changes at the bottom of the “Email settings” page.
  11. When you’re finished, click Add Setting (at the bottom of the dialog box).
  12. Click Save changes (at the bottom of the “Email settings” page) to confirm your changes.

It can take up to an hour for changes to propagate to user accounts. You can track changes in the Admin audit log.

Adding Contacts to Office 365

First of all you will need a CSV file like the one in the image below ensuring the column headers match:

externalcontacts

When you have created your list of new Contacts that you need to create you can then import these into Office 365 using the following Powershell Commands:

To Connect to Office 365 Powershell:

Import-Module MSOnline
$O365Cred = Get-Credential
$O365Session = New-PSSession –ConfigurationName Microsoft.Exchange -ConnectionUri
https://ps.outlook.com/powershell -Credential $O365Cred -Authentication Basic
-AllowRedirection
Import-PSSession $O365Session

To import the contacts in your CSV file:

Import-Csv c:\externalcontacts.csv|%
{New-MailContact -Name $_.Name -DisplayName $_.Name -ExternalEmailAddress
$_.ExternalEmailAddress -FirstName $_.FirstName -LastName $_.LastName}

We then had to update all the Office 365 mailboxes to use the forwarding address to send mail back to G-Suite using the following PowerShell and CSV file:

o365forwarding

Import-CSV "C:\Temp\Users.csv" | %
{ $_.Condition = [bool]($_.Condition -as [int]); $_  } |
 ForEach {Set-Mailbox -Identity $_.mailbox
 -ForwardingAddress $_.forwardto -Delivertomailboxandforward
 $_.Condition}

On Prem AD with NO Exchange Attributes

So when adding the mailboxes in Office 365 be default the users email addresses were the onmicrosoft.com domain. This was happening because there were no On Premise Exchange Server therefore no Proxy addresses recorded in Active Directory. We then had to add all of the email address alias’s to the proxy addresses using PowerShell. The next few commands are how we did this.

Export the SamAccount and Existing Email details

Import-Module ActiveDirectory
# Delete file if it exists
$FileName = "C:\temp\user.csv"
if (Test-Path $FileName)
{
  Remove-Item $FileName
}
Get-Aduser -filter * -Properties * |
Select SamAccountName,mail | export-csv $FileName

Once you have a list of users with the correct list of Alias addresses I then ran the following PoweShell to update all of the proxy addresses

GC C:\temp\user.csv | % {
Set-ADUser $_ -Add @{ProxyAddresses="smtp:$_@aliasdomain.org.uk"}
}

Implementation of Mimecast – Outbound

G-Suite

To prepare your outbound G Suite hostname:

  1. Log on to the Google Admin Console.
  2. Navigate to Apps | G Suite | Gmail | Advanced Settings.
  3. Click on the Hosts button.
  4. Click on the Add Route button.
  5. Enter a Route Name (e.g. Mimecast Outbound Host).
  6. Select Multiple Host and enter the Mimecast Outbound Hostnames for your Mimecast region. Both must be marked as primary. See the “Outbound Send Connectors section of the Mimecast Gateway page for full details.
  7. Click on the Save button.
  8. Click on the Add Route button.
  9. Enter a Route Name (e.g. Internal Sending Host).
  10. Select Multiple Host and enter the Google Apps MX Records (ASPMX.L.GOOGLE.COM. and ALT1.ASPMX.L.GOOGLE.COM).
  11. Click on the Save button.

To configure routing rules:

  1. Click on the General Settings tab.
  2. Navigate to the Routing section.
  3. Click on the Configure button.
  4. Select the Outbound option in the “Messages to Affect” section.
  5. Select the Change Route option in the Route section.
  6. Select the Route Name created in step 5 of the “Preparing Your Outbound Hostname” section.
  7. Click on the Add Setting button.
  8. Click on the Add Another button.
  9. Select the Internal | Sending option in the “Messages to Affect” section.
  10. Select the Change Route option in the Route section.
  11. Select the Route Name created in step 9 of the “Preparing Your Outbound Hostname” section.
  12. Click on the Add Setting button.



Office 365

  1. Log in to the Office 365 Administration Console.
  2. Select the Admin | Exchange menu item.
  3. Select the Mail Flow | Connectors menu item.
  4. Create a Connector.
  5. Complete the New Connector – Select Your Mail Flow Scenario dialog as follows:
    Field Description
    From Select “Office 365” from the drop down list.
    To Select “Partner Organization” from the drop down list.
  6. Select the Next button.
  7. Complete the New Connector – New Connector dialog as follows:
    Field Description
    Name Enter a name for the connector.
    Description Enter a description for the connector.
    Turn It On Select this option to enable the connector.
  8. Select the Next button.
  9. Select the Only When Email Messages are Sent to These Domains option.
  10. Select the ico_plus.png icon to add the recipient domains that should use this connector.
  11. Enter a value of * to route all outbound emails through us.
  12. Select the OK button.
    Connector
  13. Select the Next button.
  14. Select the Route Email Through These Smart Hosts option.
  15. Select the ico_plus.png icon to add your region’s smart hosts.

    Region Office 365 Account Hostnames
    Europe (Excluding Germany) eu-smtp-o365-outbound-1.mimecast.com

    eu-smtp-o365-outbound-2.mimecast.com

    Germany de-smtp-o365-outbound-1.mimecast.com

    de-smtp-o365-outbound-2.mimecast.com

    America us-smtp-o365-outbound-1.mimecast.com

    us-smtp-o365-outbound-2.mimecast.com

    South Africa za-smtp-o365-outbound-1.mimecast.co.za

    za-smtp-o365-outbound-2.mimecast.co.za

    Australia au-smtp-o365-outbound-1.mimecast.com

    au-smtp-o365-outbound-2.mimecast.com

    Offshore je-smtp-o365-outbound-1.mimecast-offshore.com

    je-smtp-o365-outbound-2.mimecast-offshore.com

  16. Select the Save button.
  17. Select the Next button.
  18. Select the following options:
    • Always use Transport Layer Security (TLS) to Secure the Connection (recommended)
    • Issued by a trusted certificate authority (CA)
  19. Select the Next button.
  20. Select the Next button.
  21. Add an Email Address of a recipient from a domain external to your organization.
  22. Select the Validate button.
  23. Select the Save button once Office 365 has successfully validated your settings.

Cloud Migrator Used for Data Migrations

Link to the 3rd Party Migration Tool:

https://cloudm.co/cloudmigrator?gclid=CjwKCAjwns_bBRBCEiwA7AVGHlIcjIAmgfI64swjBotgV_WwduBCpMhEaBjYrcruD30K1wuJPuIkERoC–wQAvD_BwE

So our experience with the Cloud Migrator APP has been interesting. Initially we started to use the Cloud Migrator Go SaaS application which was reasonably simple to configure following the guides provided by Cloud M. However we soon realised there were speed issues when moving data between G-Suite & O365.  The issues are caused by the API’s between GSuite and O365 being limited. There is nothing we or Cloud M could do to improve the migration speed between the two services.

We then switched to the Cloud Migrator App which you install on your own dedicated server On Premise – in our case we used a Virtual machine in VMWare. Once configured we were able to fire up numerous Servers to run Cloud Migrator having a number of migration batches running at the same time and our Data throughput seemed to be 4x that of the cloud Migrator Go SaaS option.

All in all the customer is now running Co Existence of Office 365 and G-Suite. Mail is flowing and users are happy. We intend to complete the migration to Office 365 in the coming weeks. I decided to write this post as there does not seem to be many guides out there to help you migrate from G-Suite to Office 365. Hopefully if you read this it will help you on your projects.





Useful Powershell Commands for Exchange

One of my recent projects was to implement a new Highly Available Exchange 2016 environment for a customer who was upgrading from Exchange 2010. When Exchange 2016 was in place, we then had to create  hybrid to Office 365. Below are some really useful PowerShell Commands I used during the implementation.

Installing Exchange 2016 Pre Requisites

Install-WindowsFeature AS-HTTP-Activation, Server-Media-Foundation,
NET-Framework-45-Features, RPC-over-HTTP-proxy, RSAT-Clustering,
RSAT-Clustering-CmdInterface, RSAT-Clustering-Mgmt,
RSAT-Clustering-PowerShell, Web-Mgmt-Console, WAS-Process-Model,
Web-Asp-Net45, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth,
Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging,
Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter,
Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service,
Web-Net-Ext45, Web-Request-Monitor, Web-Server, Web-Stat-Compression,
Web-Static-Content, Web-Windows-Auth, Web-WMI, Windows-Identity-Foundation,
RSAT-ADDS

Collecting Virtual Directory Details

Outlook Anywhere

Get-OutlookAnywhere -AdPropertiesonly | Select server,Internalhostname,
Externalhostname

Outlook Web Access

Get-OWAVirtualDirectory -AdPropertiesOnly | Select Server,InternalURL,
ExternalURL

Exchange Control Panel

Get-ECPVirtualDirectory -AdPropertiesOnly | Select Server,InternalURL,
ExternalURL

Outlook Address Book

Get-OABVirtualDirectory -AdPropertiesOnly | Select Server,InternalURL,
ExternalURL

Web Services

Get-WebServicesVirtualDirectory -AdPropertiesOnly | Select Server,
InternalURL,ExternalURL

MAPI

Get-MAPIVirtualDirectory -AdPropertiesOnly | Select Server,InternalURL,
ExternalURL

Active Sync

Get-ActiveSyncVirtualDirectory -AdPropertiesOnly | Select Server,
InternalURL,ExternalURL



AutoDiscover

Collecting the AutoDiscover URI for Exchange 2010 Servers in the environment

Get-ClientAccessServer -identity SERVERNAME|select Name,
AutodiscoverServiceInternalURI |FL

Setting the AutoDiscover URI on the newly installed Exchange 2016 Server

Set-ClientAccessService -identity SERVERNAME -AutodiscoverServiceInternalURI
https://mail.domainname.com/autodiscover/autodiscover.xml



Exchange 2016 CU7 Hybrid Gotcha!!!

So after a successful deployment of Exchange 2016 the next step was to create a hybrid to Office 365 Exchange Online, Simple as Exchange 2016 was “Born in the cloud” according to Microsoft. NOT SO!!! – I downloaded the latest version of Exchange 2016 which at the time was CU7, but when configuring the hybrid it would just sit at adding Federated Domain.

A bug slipped into Exchange 2016 CU7 which prevents the HCW from completing. The HCW fails to get past the domain ownership validation:


No matter how hard you try, you can’t get past this screen.

Fortunately CU8 was release 19th December 2017 – So I spent the next day patching my newly installed Exchange environment. – then completing the Hybrid configuration.

Enabling Legacy On Premise Public Folders in Office 365

I have recently worked on numerous Office 365 migrations that require users that have been migrated to Office 365 to have access to legacy Exchange 2010 Public folders. By default this will not work so will require a few extra steps in order to make the magic happen. Hopefully the below will be simple enough to follow in order to enable Legacy public folders…

These instructions assume that you have used the Hybrid Configuration Wizard to configure and synchronise your on-premises and Exchange Online environments and that the DNS records used for most users’ Autodiscover references an on-premises end-point. For more information, see Hybrid Configuration wizard.

If your public folders are on Exchange 2010 servers, then you need to install Client Access services on all mailbox servers that have a public folder database. This allows the Exchange RpcClientAccess service to be running, which allows for all clients to access public folders. For more information, see Install Exchange Server 2010. – The Servers will require a reboot in order for this role to become available – so remember to plan the outage before starting this process.

Create an empty mailbox database on each public folder server.

For Exchange 2010, run the following command. This command excludes the mailbox database from the mailbox provisioning load balancer. This prevents new mailboxes from automatically being added to this database.

New-MailboxDatabase -Server <PFServerName_with_CASRole> -Name
<NewMDBforPFs> -IsExcludedFromProvisioning $true

Create a proxy mailbox within the new mailbox database and hide the mailbox from the address book. The SMTP of this mailbox will be returned by AutoDiscover as the DefaultPublicFolderMailbox SMTP, so that by resolving this SMTP the client can reach the legacy exchange server for public folder access.

New-Mailbox -Name <PFMailbox1> -Database <NewMDBforPFs>
Set-Mailbox -Identity <PFMailbox1> -HiddenFromAddressListsEnabled $true

For Exchange 2010, enable Autodiscover to return the proxy public folder mailboxes.

For Exchange 2010, enable Autodiscover to return the proxy public folder mailboxes.

Set-MailboxDatabase <NewMDBforPFs> -RPCClientAccessServer
<PFServerName_with_CASRole>

Repeat the preceding steps for every public folder server in your organisation.

Download the following files from Mail-enabled Public Folders – directory sync script:

  • Sync-MailPublicFolders.ps1
  • SyncMailPublicFolders.strings.psd1

Save the files to the local computer on which you’ll be running PowerShell. For example, C:\PFScripts.

On the legacy Exchange server with the public folders, run the following command to synchronise mail-enabled public folders from your local on-premises Active Directory to Office 365.

Sync-MailPublicFolders.ps1 -Credential (Get-Credential)
-CsvSummaryFile:sync_summary.csv

Where Credential is your Office 365 user name and password, and CsvSummaryFile is the path to where you would like to log synchronisation operations and errors, in .csv format.

The final step in this procedure is to configure the Exchange Online organisation and to allow access to the legacy on-premises public folders. Make remote public folders discoverable to enable the Exchange Online organisation to access the on-premises public folders.

Set-OrganizationConfig -PublicFoldersEnabled Remote -
RemotePublicFolderMailboxes PFMailbox1,PFMailbox2,PFMailbox3

You must wait until Active Directory synchronisation has completed to see the changes. This process can take up to 3 hours to complete. If you don’t want to wait for the recurring synchronisations that occur every three hours, you can force directory synchronisation at any time. For detailed steps to force directory synchronisation, see Force directory synchronization. Office 365 randomly selects one of the public folder mailboxes that’s supplied in this command. – Make sure the PFUser that you created is also located in an OU that is synchronised to O365, if not the above command will not work.

How Do You Know If This Has Worked?

This last change can take a while to apply (Approx 1 Hour). To make sure that the change applied run the following cmdlet: Get-Mailbox <username> |fl *public*


Exchange 2010–Office 365 Hybrid Setup – Remote Powershell

Recently I have been getting issues with performing a hybrid configuration from an on premise Exchange 2010 Server running the latest services packs and meeting all the required pre requisites to perform a Hybrid configuration to Office 365.

One of the first steps is to connect your on Premise exchange server to Office 365 using remote PowerShell, following the how to guide it tells you to connect to the following URI in the command below:

$session = new-pssession -configurationname microsoft.exchange -connectionuri https//ps.outlook.com/powershell/ -credential $o365cred -authentication basic

When you run this command you will get the following error:

ps.outlook.com] The WinRM service cannot process the request because the request needs to be sent to a different machine. Use the redirect information to send the request to a new machine. Redirect location reported: https://ps.outlook.com/PowerShell-LiveID?PSVersion=2.0 . To automatically connect to the redirected URI, verify “MaximumConnectionRedirectionCount” property of session preference variable “PSSessionOption” and use “AllowRedirection” parameter on the cmdlet.+ CategoryInfo : OpenError: (System.Manageme….RemoteRunspace:RemoteRunspace) [], PSRemotingTransportRed
irectException + FullyQualifiedErrorId : PSSessionOpenFailed

After speaking with Microsoft I have identified the URI has changed to https://outlook.office365.com/powershell-liveid/

and the Powershell command is slightly different to include the –AllowRedirection as there are multiple servers to connect to.

The command that worked for me was the following:

$Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri https://outlook.office365.com/powershell-liveid/ -Credential $UserCredential -Authentication Basic -AllowRedirection

Office 365 Credential Issues

If you’ve ever connected a workstation to Office 365 and then been constantly prompted for your credentials you know how frustrating it can be.  Have you ever checked that box in Outlook to “Remember Password” and then screamed in frustration as yet another logon prompt came up?

Below is a collection of sites that can help you troubleshoot issues logging into your Office 365 account.

Connect to Exchange Online using remote PowerShell

What do you need to know before you begin?

  • You can use the following versions of Windows:
    • Windows 8 or Windows 8.1
    • Windows Server 2012 or Windows Server 2012 R2
    • Windows 7 Service Pack 1 (SP1)*
    • Windows Server 2008 R2 SP1*

* You need to install the Microsoft .NET Framework 4.5 or 4.5.1 and then either the Windows Management Framework 3.0 or the Windows Management Framework 4.0. For more information, see Installing the .NET Framework 4.5, 4.5.1 and Windows Management Framework 3.0 or Windows Management Framework 4.0.

Connect to Exchange Online

  1. On your local computer, open Windows PowerShell and run the following command.
    $UserCredential = Get-Credential

    In the Windows PowerShell Credential Request dialog box, type your Exchange Online user name and password, and then click OK.

  2. Run the following command.

    $Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri https://outlook.office365.com/powershell-liveid/ -Credential $UserCredential -Authentication Basic -AllowRedirection

    Note   If you are an Office 365 operated by 21Vianet customer in China, use the following value for the ConnectionUri parameter: https://partner.outlook.cn/PowerShell.

  3. Run the following command.

    Import-PSSession $Session

NoteNote:

Be sure to disconnect the remote PowerShell session when you’re finished. If you close the Windows PowerShell window without disconnecting the session, you could use up all the remote PowerShell sessions available to you, and you’ll need to wait for the sessions to expire. To disconnect the remote PowerShell session, run the following command.

Remove-PSSession $Session

How do you know this worked?

After Step 3, the Exchange Online cmdlets are imported into your local Windows PowerShell session as tracked by a progress bar. If you don’t receive any errors, you connected successfully. A quick test is to run an Exchange Online cmdlet—for example, Get-Mailbox—and see the results.

If you receive errors, check the following requirements:

  • A common problem is an incorrect password. Run the three steps again and pay close attention to the user name and password you enter in Step 1.
  • To help prevent denial-of-service (DoS) attacks, you’re limited to three open remote PowerShell connections to your Exchange Online organization.
  • Windows PowerShell needs to be configured to run scripts. You only need to configure this setting once on your computer, not every time you connect. To enable Windows PowerShell to run signed scripts, run the following command in an elevated Windows PowerShell window (a Windows PowerShell window you opened by selecting Run as administrator).

    Set-ExecutionPolicy RemoteSigned
  • The account you use to connect to Exchange Online must be enabled for remote Shell. For more information, see Manage remote PowerShell access in Exchange Online.
  • TCP port 80 traffic needs to be open between your local computer and Exchange Online. It’s probably open, but it’s something to consider if your organization has a restrictive Internet access policy.
